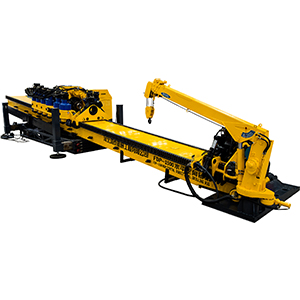

FDP-400 Horizontal Directional Drilling Rig

Home » Products » Drilling Rig » HDD Drill Rig » FDP-400 Horizontal Directional Drilling Rig
Main Drill Rig
Max Feed Thrust / Feed Pull 4000KN(899200 lbf)
Feed Thrust/ Feed Pull System Pinion and rack type, moving with 6 gears driving with three-speed gear shift, step less speed regulating Ⅰ shift: 7.5m/min (24.6 feet/min) Ⅱ shift: 32m/min (105 feet/min)
Rotation driving of HDD Rig Gear transmission, step less speed regulating Ⅰshift hollow spindle torque: 98000N·m(72226 lbf·ft)@42r/min Ⅱshift hollow spindle torque: 49000N·m (36113 lbf·ft)@84r/min
Motor of Horizontal Directional Drilling Rig
Manufacturer Weichai Power Co., Ltd
Rated Value of HDD Rig motor 552kW (750HP)
Operational State Thrust/Pull and rotation all can reach above mentioned max performance index.
Operator's cab
 Equipped with air-conditioner
Dimension and Gross weight
Dimension(L×W×H) 17.17×3.25×3.45m (56.32×10.33×11.32 feet)
Gross weight 52000kg (114660 lb)
Mast Entrance Oblique Angle
HDD Rig 8-16°
Environmental Standard and Service
Engine emissions and noise meeting European II standard.
Drilling Tool for Horizontal Directional Drilling Rig
Drilling Rod to be used 5〞, "5 1/2"
Reaming shell(cutting type) Ф425,Ф530,Ф680,Ф760,Ф900,Ф1100,Ф1350mm (Ф16.7,Ф20.9,Ф26.8,Ф29.9,Ф35.4,Ф43.3,Ф53.1 inch)
Shackles
Clamp holder centering by it, Shackles full distance moving.
Clamper/ Break-out Tong Distance adjustable with accurate, stable and reliable breaking- out.
Max HDD Rig make-up torque 110000N·m (81070 lbf·ft)
Max break out torque 220000N·m (162140 lbf·ft) (It can be designed according to the requirement of client.)
Mast
Length of mast 16.5 meters.(54.12 feet)
Hydraulic Mud Pump
Full Hydraulic driving, flux step less adjustable.
Flux Rate 0-2200L/min (0-581 US Gallons/min)
Pressure 0-10Mpa (0-1450 psi)
Chassis
Track Caterpillar Assembly Type
Accessory for Horizontal Directional Drilling Rig
Pressure, flux rate, and revolution and other more than ten data will be shown in figures. This is easy for analysis and judgment of problems and conditions in the performance process of our HDD Rig.
