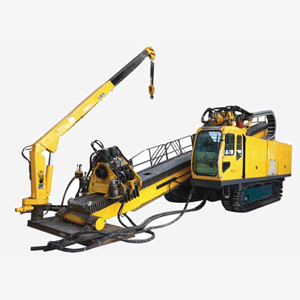

FDP-300 Horizontal Directional Drill Rig
Specifications:
| Main FDP-300 Horizontal Directional Drill Rig | |
| Max Feed Thrust / Feed Pull | 3000KN(674400 lbf) |
| Feed Thrust/ Feed Pull System | Pinion and rack type, moving with 6 gears driving with three-speed gear shift, step less speed regulating Ⅰ shift: 7.5m/min (24.6 feet/min) Ⅱ shift: 18m/min (59 feet/min) Ⅲ shift: 32m/min (105 feet/min) |
| Rotation driving of HDD Rig | Gear transmission, step less speed regulating Ⅰshift hollow spindle torque: 98000N·m(72226 lbf·ft)@35r/min Ⅱshift hollow spindle torque: 49000N·m (36113 lbf·ft)@70r/min |
| Motor of FDP-300 Horizontal Directional Drill Rig | |
| Manufacturer | Weichai Power Co., Ltd |
| Rated Value of HDD Rig motor | 610kW (840HP) |
| Operational State | Thrust/Pull and rotation all can reach above mentioned max performance index. |
| Operator's cab of FDP-300 Horizontal Directional Drill Rig | |
| Equipped with air-conditioner | |
| Dimension and Gross weight | |
| Dimension(L×W×H) | 14.5×3.15×3m (47.6×10.3×9.8 feet) |
| Gross weight | 45000kg (99225 lb) |
| Mast Entrance Oblique Angle of FDP-300 Horizontal Directional Drill Rig | |
| HDD Rig 8-16° | |
| Environmental Standard and Service | |
| Engine emissions and noise meeting European II standard. | |
| Drilling Tool of FDP-300 Horizontal Directional Drill Rig | |
| Drilling Rod to be used. | 5〞、6 5/8〞 |
| Reaming shell(cutting type) | Ф425,Ф530,Ф680,Ф760,Ф900,Ф1100,Ф1350mm (Ф16.7,Ф20.9,Ф26.8,Ф29.9,Ф35.4,Ф43.3,Ф53.1 inch) |
| Shackles | |
| Clamp holder centering by it, Shackles full distance moving. | |
| Clamper/ Break-out Tong | Distance adjustable with accurate, stable and reliable breaking- out. |
| Max HDD Rig make-up torque | 98000N·m (72226 lbf·ft) |
| Max break out torque | 196000N·m (144452 lbf·ft) (It can be designed according to the requirement of client.) s |
| Mast of FDP-300 Horizontal Directional Drill Rig | |
| Length of mast 14.8 meters.(48.5 feet) | |
| Hydraulic Mud Pump | |
| Full Hydraulic driving, flux step less adjustable. | |
| Flux Rate | 0-2200L/min (0-581 US Gallons/min) |
| Pressure | 0-10Mpa (0-1450 psi) |
| Chassis | |
| Track Caterpillar Assembly Type | |
| Accessory | |
| Pressure, flux rate, and revolution and other more than ten data will be shown in figures. This is easy for analysis and judgment of problems and conditions in the performance process. | |
