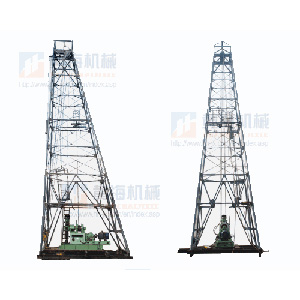

SG-24 SGXZ-24 Derrick
1. Feature of SG-24 Derrick
(1). The derrick is reasonably structured with its story height of 1.7m. The weight of its single piece is light. It is easy to install in quite short time.
(2). It has a considerably large load capacity. It can be used to vertical drilling at the height of 1800m.
(3). The SGXZ-24 derrick is adaptable. Its steel pedestal can be installed to the numerous vertical drilling rigs from 1500m to 2400m.
(4). It covers less and hence its cost of excavation and ground-leveling is low. It is suitable for the mountain area.
| Nominal Height of Drilling Tower | 23m |
| Max. Static Load of Crown Block | 320 Kn |
| Length of Stand | 4×4.5 or 6×3 |
| Inclined Angle | 90° |
| Nominal Area of Pedestal | 5.5.m ×5.5m |
| Number of Crown Block | 4 |
| Max. Load of Hanging Cage | 0.8 Kn |
| Weight | 7300kg |
2. Feature of SGXZ-24
(1). The derrick has a reasonable structure with its story height of 1.7m. Its single piece is light. It is easy to equip at a fast seed.
(2). It enjoys a large loading capacity. It can mseet the demands of vertical drilling at the height of 3000m.
(3). The SGXZ-24 derrick is quite adaptable. It can be used to various vertical drilling rigs with the height range of 1800m-3000m.
(4). It takes up little area. As a result, its expenditure of excavation and ground-leveling is minimal. It is suitable for the mountain area.
Specification of SGXZ-24
| Nominal Height of Drilling Tower | 24m |
| Max. Static Load of Crown Block | 600 Kn |
| Length of Stand | 4× 4.5 or 6×3 |
| Inclined Angle | 90° |
| Nominal Area of Pedestal | 6.5.m ×6.5m |
| Number of Crown Block | 4 |
| Max. Load of Hanging Cage | 0.8 Kn |
| Weight | 13500kg |
