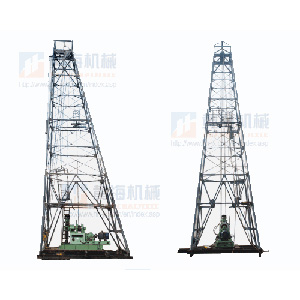

WXT-18 Derrick
Feature
1. The pedestal of the WXT-18 derrick is made of structural steel. The pedestal can be divided into two parts. Thanks to the quality of the structural steel, the derrick is solid and stable. The derrick is easy to dissemble and to transport.
2. The derrick has large payload capacity. It can meet the lifting requirement for the 1500m, vertical hole drilling.
3. It is highly adaptable. Its steel-made pedestal can be applied to various vertical drilling rigs from 1000m to 1500m.
4. It covers little area. The cost of excavating and leveling ground is minimal. The derrick is suitable for the mountain area.
Specification of WXT-18 Derrick for Vertical Drilling Rigs
| Nominal Height of Derrick | 13m |
| Max. Static Load of Crown Block | 250 Kn |
| Length of Stand | 2×4.5 or 3×3 |
| Inclined Angle | 90° |
| Nominal Area of Pedestal | 3.94m |
| Number of Crown Block | Two fixed pulley |
| Max. Load of Hanging Cage | 0.8 Kn |
| Weight | 4500kg |
