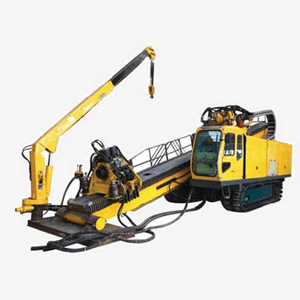

FDP-120 HDD Rig
FDP-120
MAIN DRILL RIG of FDP-120 HDD RIG
Max Feed Thrust / Feed Pull 1200KN(269760 lbf)
Feed Thrust/ Feed Pull System Pinion and rack type, moving with 4 gear driving with three-speed gear shift, step less speed regulating Ⅰ shift :7m/min (23 feet/min) Ⅱ shift:16m/min (52.5 feet/min) Ⅲ shift:28m/min (91.8 feet/min)
Rotation driving Gear transmission, step less speed regulating Ⅰshift hollow spindle torque:50000N·m(36850 lbf·ft)@38r/min Ⅱshift hollow spindle torque:25000N·m(18425 lbf·ft)@76r/min
Motor of FDP-120 HDD RIG
Manufacturer Weichai Power Co., Ltd
Rated Value Two-motors 400kW (540HP), Single motor 360kW
Operational State Thrust/Pull and rotation all can reach above mentioned max performance index.
Dimension and Gross weight of FDP-120 HDD RIG
Dimension(L×W×H) 14.5×2.8×2.85m (47.6×9.2×9.3 feet)
Gross weight 30000kg (66150 lb)
Mast Entrance Oblique Angle of FDP-120 HDD RIG
8-16°
Environmental Standard and Service
Engine emissions and noise meeting European II standard.
Drilling Tool of FDP-120 HDD RIG
Drilling Rod to be used. 4 1/2〞、5〞
Reaming shell(cutting type) Ф325 ,Ф530,Ф660,Ф760,Ф900,Ф1100mm (Ф12.8 ,Ф20.9,Ф26,Ф29.9,Ф35.4,Ф43.3 inch)
Shackles of FDP-120 HDD RIG
Clamp holder centering by it, Shackles full distance moving.
Clamper/ Break-out Tong Distance adjustable with accurate, stable and reliable breaking-out.
Max make-up torque 60000N·m (44220 lbf·ft)
Max break out torque 120000N.m (88440 lbf·ft) (It can be designed according to the requirement of client.)
Crane On The Rig of FDP-120 HDD RIG
3MT (9.8 feet) Straight-arm Crane.
Mast of Rig of FDP-120 HDD RIG
Length of mast 14 meters.(45.9 feet)
Hydraulic Mud Pump of FDP-120 HDD RIG
Full Hydraulic driving, flux step less adjustable.
Flux Rate 0-1000L/min(0-264 US Gallons/min)
Pressure 0-8Mpa(0-1160 psi)
Chassis
Track Caterpillar Assembly Type
Accessory
Pressure, flux rate, and revolution and other more than ten data will be shown in figures. This is easy for analysis and judgment of problems and conditions in the performance process.
