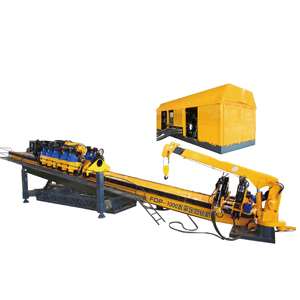

FDP-1000 Horizontal Directional Drilling Rig
Technical Parameters of HDD Drilling Rig FDP-1000
| Feeding (traveling) | ||
| Rated feeding / pulling capacity | 990T | |
| Max. feeding / pulling capacity | 1045T | |
| Feeding / pulling system | rack and pinion | |
| Traveling driven by ten gears, 4 shifts stepless adjustable | 36 m/min 1st shift: 36 m/min | |
| 18 m/min 2nd shift: 18 m/min | ||
| 17 m/min 3rd shift: 17 m/min | ||
| 8.5 m/min 4th shift: 8.5 m/min | ||
| Rotation of HDD Drilling Rig FDP-1000 | ||
| Rotating system | gear transmission, stepless adjustable | |
| I shift torque | 190000Nm @50r/min | |
| II shift torque | 95000Nm @100r/min | |
| Power of HDD Drilling Rig FDP-1000 | ||
| Manufacturer | Volvo, Sweden | |
| Ratings | 394×4 kw/2100r/min | |
| Running state | Feeding / pulling and rotating could achieve the max, performance parameters above. | |
| Power for main machine | Ratings 145KW/2100r/min could be chosen by client's demand. | |
| Hydraulic system | Close type system for feeding, pulling and rotating, open type load-sensing system for auxiliary circuit. | |
| Chassis of HDD Drilling Rig FDP-1000 | ||
| 1. Platform type, with hydraulic cylinders 2. On crawlers with traveling speed 1.5Km/h. |
||
| Crane of HDD Drilling Rig FDP-1000 | ||
| 6T straight arm crane | ||
| Drill rod of HDD Drilling Rig FDP-1000 | ||
| The length of drill rod should be within 10.5 meter. | ||
| Shackles of HDD Drilling Rig FDP-1000 | ||
| Adjustable distance, accurate and reliable screwing-off, automatic centering | ||
| max. screwing on torque | 210000Nm | |
| max. Screwing off torque | 420000Nm | |
| Drilling angle | 8°~ 16° | |
| Accessory of HDD Drilling Rig FDP-1000 | ||
| Pressure, flow rate, rotating speed etc. could be seen in operation cabin for easier analysis while drilling. | ||
