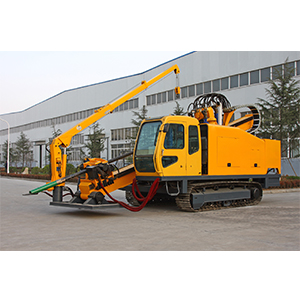

FDP-60 Horizontal Directional Drilling Rig

Home » Products » Drilling Rig » HDD Drill Rig » FDP-60 Horizontal Directional Drilling Rig
The Main Machine of FDP-60 Horizontal Directional Drilling Rig
Power of Engine 225 KW(302HP)@2200r/min
Max. Push capacity 610KN (137130 lbf)
Max. Pull capacity 610KN (137130 lbf)
Rated Torque 27000 N·m(19900 lbf·ft) @45 r/min
13500 N·m (9950 lbf·ft) @90 r/min
Hollow Spindle Rotation 0—45 r/min
0—90 r/min
Feeding Stroke 6000 mm(236.2 inch)
Diameter of Guide Hole Ф240 mm(9.5 inch)
Drilling Angle 8°—18°
Move Mode Propelled with Track Assemblies
Dimension (L×W×H) 9000×2750×2800 mm(354×108×110 inch)
Weight 24000 kg(52920 lb)
Mud Pump of FDP-60 Horizontal Directional Drilling Rig
Specification BWF-600
Max. Discharge 600 L/min(158.5 US Gallons/min)
Peak Pressure 8 Mpa(1160 psi)
Weight 650kg(1433 lb)
Drilling Tools and Auxiliary System of FDP-60 Horizontal Directional Drilling Rig
Specification of Rod Ф102×5000 mm(4.02×197 inch)
Guide Bit Ф170 mm(6.7 inch)
Reamer Ф425,Ф500,Ф680,Ф760,Ф820,Ф920,Ф1000 (Ф16.7,Ф19.7,Ф26.8,Ф29.9,Ф32.3,Ф36.2,Ф39.4 inch)
Distributor 80T (176400 lb)
Tracker Optional Part
