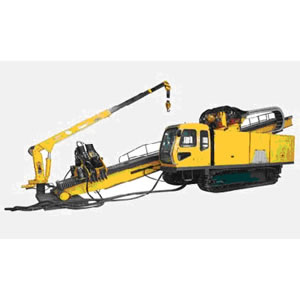

FDP-245 Horizontal Directional Drilling Rig
| Main Drill Rig | |
| Max. Feed Thrust/ Feed Pull | 2450KN (550760 lbf) for this HDD Drill Rig |
| Feed Thrust/ Feed Pull System | Ⅰ shift :9 m/min (29.6 feet/min) |
| Ⅱ shift :28 m/min (91.9 feet/min) | |
| Rotation Driving of the Geological Drill Rig | Gear transmission, step less speed regulating Ⅰshift hollow spindle torque:70000N·m(51590 lbf·ft) @42r/min Ⅱshift hollow spindle torque:35000N·m(25795 lbf·ft) @84r/min |
| HDD Drill Rig Motor | |
| Manufacture power of Geological Drill Rig | Weichai Power equipped with this Geological Drill Rig |
| Rated Value | 450KW (640HP) |
| Operational State | Dual Power System Working |
| Operator's Cab | Equipped with Air-conditioner |
| Dimension and Gross Weight | |
| Dimension(L×W×H) | 14.5×3.15×3m (47.6×10.3×9.8 feet) |
| HDD Drill Rig Gross Weight | 44 T(97020 lb) |
| Mast Entrance Oblique Angle | 8°—16° |
| Environmental Standard and Service | Engine Emissions and Noise Meeting EuropeanⅡ Standard |
| Drilling Tool for HDD Drill Rig | |
| Drilling Rod Be Used | "5 1/2" |
| Reaming Shell for Geological Drill Rig | Ф325,Ф530,Ф660,Ф760,Ф900,Ф1100mm (Ф12.8,Ф20.9,Ф26.0,Ф29.9,Ф35.4,Ф43.3 inch) |
| Shackles | Clamp Holder Centering by Itself |
| Clamper /Break-out Tong | Distance adjustable with accurate, stable and reliable breaking-out |
| Max. Make-up Torque | 90 KN·M (66330 lbf·ft) |
| Max. Break-out Torque | 180 KN·M (132660 lbf·ft) |
| Crane On the Rig | 3 T(6615 lb) Straight-arm Crane |
| Mast of HDD Drill Rig | Length could be adjusted according to client's requirements |
| Hydraulic Mud Pump | Full Hydraulic Driving, Flux Step less Adjustable. |
| Flux Rate of the Geological Drill Rig | 0—1500 L/min(0-396 US Gallons/min) |
| Pressure of HDD Drill Rig | 0—10 MPa (0-1450 psi) |
| Chassis | Track Assembly Type |
| Accessory for HDD Drill Rig | |
| Pressure, flux rate, revolution and other more than ten dates will be shown in figures. This is easy for analysis and judgment of problems and condition in the performance process. | |
