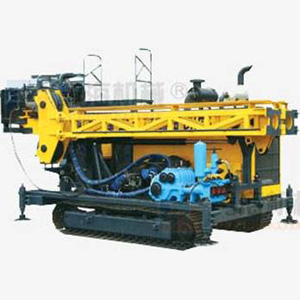

HYDX-6A Full Hydraulic Drilling Rig
I. Description
HYDX-6A full hydraulic drilling rig is a thoroughly new type of drilling rig developed on the basis of advanced techniques in the world. HYDX-6 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
Main Features:
This hydraulic core drilling rig, equipped with crawler, has a hydraulic driving system. It owns a compact and advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The angle of mast is adjustable from 0° to 90° to ensure a proper hole-drilling angle. The low gravity center of this hydraulic drilling machine promises a steady operation. It also provides operators with a convenient and comfortable working circumstance with a wide view. In short, our HYDX-6A full hydraulic drilling rig has a beautiful outline and shows a people-oriented design idea.
1)Advantages:
(1)Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
(2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet) drilling rod guarantee the high operation efficiency of this hydraulic core drilling rig.
(3)Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (the noise cannot over 72 db), which makes this hydraulic drilling machine proper to be operated in urban areas.
(4)Energy Saving
The advanced technique of loading-sensor-controlling helps to reduce the rig’s consumption of driving force and heat discharge to the minimum.
HYDX-6A full hydraulic drilling rig has an outstanding external appearance, a compacted structure, reliable functions and a flexible operating system. All these elements have made this hydraulic core drilling rig the best choice among the same products in both domestic and abroad markets.
2.Application Range
This hydraulic drilling machine can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, this full hydraulic drilling rig can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
II. Main Performance Parameters of HYDX-6A
| Diesel Engine | Model | Cummins 6CTA8.3-C240 (turbocharged and charge water cooled) |
| Displacement | 8.3 L (2.19 US Gallons) | |
| Power | 179 kW (240 HP) | |
| Rated Rotational Speed (factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 2000 m (6560 feet) |
| NQ | 1600 m (5248 feet) | |
| HQ | 1300 m (4264 feet) | |
| PQ | 1000 m (3280 feet) | |
| Drill Head | Rotation Motor | Double Hydraulic Motors –variable and Reversible Maker：SAUER-DANFOSS |
| RPM | Two shifts, stepless change 0 to 1100 RPM | |
| Ratios | 1st 8.776:1 2nd 2.716:1 | |
| Hydraulic Chuck (PQ) | Hydraulically opened, disc spring clamping, normally closed type; axial holding capacity of 222 400 N | |
| Max. Torque | 6400 N m (4717 lbf·ft) | |
| Spindle Inner Diameter | 121 mm(4.76 inch) | |
| Max. Lifting Capacity of Spindle | 220 kN (49456 lbf) | |
| Max. Feeding Power | 110 kN (24728 lbf) | |
| Primary Pump | Hydraulic pump: axial piston variable displacement triplex pump for driving of rotator, winch mud pump and leveling jacks with load sensing system. | Manufacturer: DANFOSS 1st pump: 200 l/m, 31.5 MPa 2nd pump: 120 l/m, 28 MPa 3rd pump: 102 l/m, 16 MPa |
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 38 to 70 m/min (bare drum) |
| Hoisting Force (single wire) | 120 kN (26976 lbf) | |
| Steel Wire Diameter | 24 mm (0.945 inch) | |
| Steel Wire Length | 50 m (164 feet) | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN (3372 lbf) (bare drum) |
| Steel Wire Diameter | 6 mm (0.24 inch) | |
| Steel Wire Length | 2000 m (6560 feet) | |
| Mast | Mast Height | 11.2 m (36.8 feet) |
| Mast Adjusting Angle | 0° to 90° | |
| Drilling Angle | Horizontally 45º to vertically 90º | |
| Feeding Stroke | 3800 mm (150 inch) | |
| Slippage Stroke | 1100 mm(59 inch) | |
| Feed Pull | 22000 kgs (48510 lbs) | |
| Feed Thrust | 11000 kgs (24255 lbs) | |
| Rod Pull | 3 m or 6 m (9.84 feet or 19.68 feet) | |
| Mud Pump | Type | Reciprocating triplex plunger pump |
| Model | BW250 | |
| Stroke | 100mm(3.9 inch) | |
| Output volume | 250,145, 90, 52 l/min (66, 38, 24, 14 US gallons/min) | |
| Discharge Pressure | 2.5, 4.5, 6.0, 6.0 MPa (363, 653, 870, 870 psi) | |
| Foot Clamp | Clamping Scope | 55.5 to 117.5 mm (2.19 to 4.63 inch) through hole Ф154 mm (6.06 inch) |
| Other | Weight | 13500 kgs (34172 lbs) |
| Dimensions (L × W ×H ) | 6220 × 2280 × 2700 mm (244.88 × 89.76 × 106.3 inch) | |
| Working Dimensions (L × W ×H ) | 4800 × 2420 × 11200 mm (188.98 × 95.28 × 440.94 inch) | |
| Transport Way | Steel crawler |
The figures in these tables have been calculated based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on tools and equipment used, conditions and drilling techniques.
