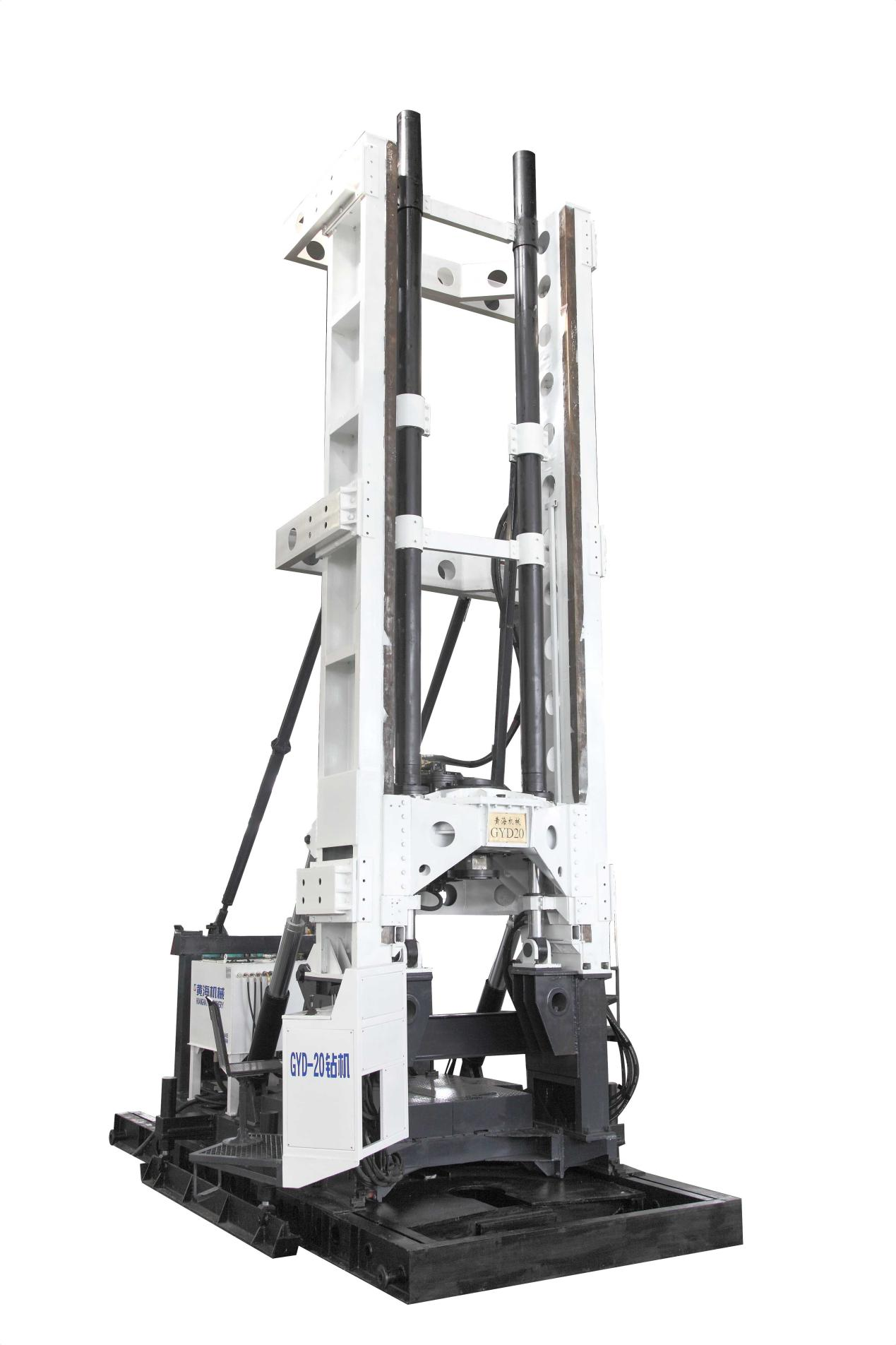

GYD-20L Engineering Drill Rig

GYD-20L Engineering Drill Rig

Product description
The drilling rig is mainly suitable for drilling construction of petroleum, coalbed methane, shale gas, water wells, mines, etc., as well as construction of various large-diameter pile holes.
Power head maximum torque 40000N.m
Maximum hole diameter 2m
Maximum drilling depth 2000m (127 drill pipe)
Rotating speed 0-120r/min
Power head stroke Single stroke 7m, double stroke 14m
Power head lifting force Single stroke 100T, double stroke 50T
Maximum opening diameter of the holder 270mm
Auxiliary crane maximum lifting capacity 30KN
Diesel model WD12.375
Diesel engine power 276KW
Diesel engine speed 2100rpm
Rig loading method crawler
Drilling rig dimensions   Working status: 7000X2985X11150 mm
Shipping status: 10150X2500X3090 mm
Rig weight 36T
