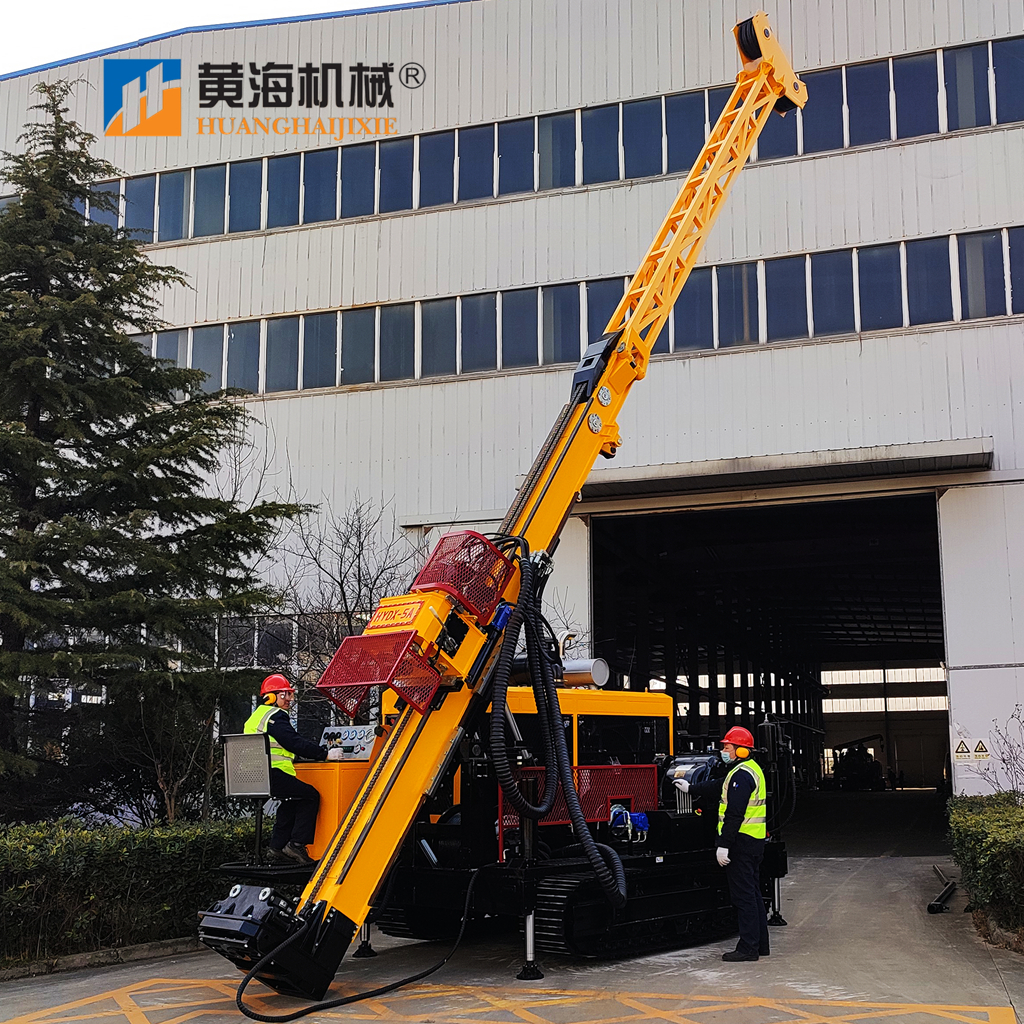

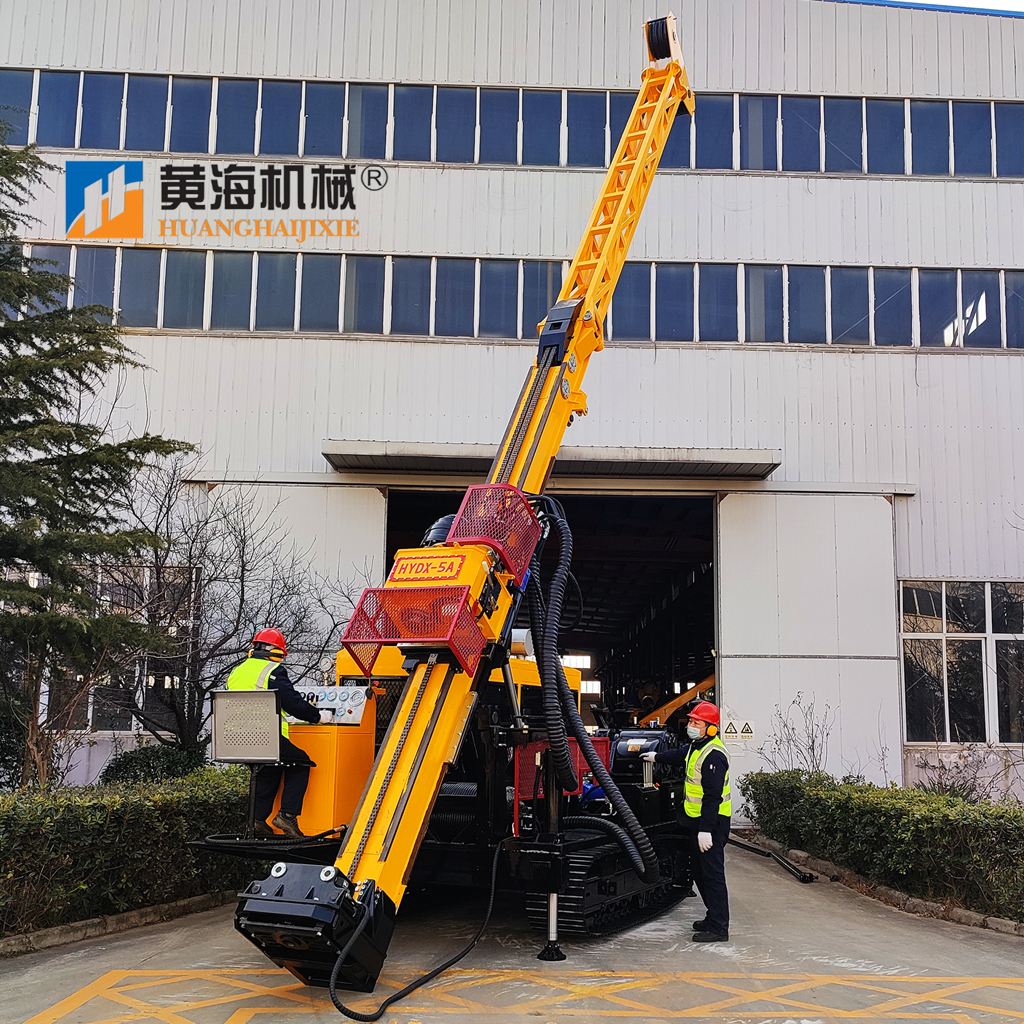

HYDX-5A Full Hydraulic Core Drilling Rig

HYDX-5A Full Hydraulic Core Drilling Rig

The HYDX-5A new model Full Hydraulic Core Drill Rig is developed by H.H. Drill-Tech Drilling Machinery Co., Ltd. with reference of advanced technique of same kind equipment at home and abroad. The drill rig has a reasonable design and superior performance. It is easy to operate and for maintenance.
Product description

HYDX-5A Full Hydraulic Core Drilling Rig

HYKD-5A full hydraulic tunnel drilling rig is mainly used in coal, geology, metallurgy, engineering and other industries, used for large-diameter gas drainage holes, water injection holes and large-diameter horizontal holes in surface engineering in mines, tunnels, and coal mines construction. It can meet the requirements of large-diameter roller cone drilling, large-diameter carbide drilling and impact rotary drilling.
Technical Features
1. Split layout, small size, light weight, convenient relocation and flexible operation.
2. The power unit uses an explosion-proof motor and a control system to drive the hydraulic pump, and the motor drives the rotation of the main shaft and the direct push mechanism of the oil cylinder to realize the feeding and rotation functions of the power head.
3. The hydraulic chuck fully meets the functions of clamping, shackle and power-off protection of the drill pipe.
4. The mast slide telescopic function, which is convenient for the mast and the base to stick closely to the base during drilling to enhance the stability of the work.
5. The up and down swing of the swing arm and the mast is suitable for multi-angle opening requirements.
6. The power head spindle has a wide speed range and a large rotation torque.

 Main Performance Parameter of HYDX-5A

Item Unit Parameter Remark
Drilling Depth   BQ m 1500 φ55.6mm
NQ 1300 Φ69.9mm
HQ 1000 φ88.9mm
PQ 680 Φ114.3mm
Power Head Capability   Rotating Speed   r/min 0~155~331
Maximum Torque N·m 5650 155r/min
Vertical shaft through hole diameter mm 121
Maximum Pulling Force kN 200
Maximum Feed Force kN 100
Diesel Engine Rated Power kW 152 Cummins QSB5.9-C210-Ⅲ
Rated Speed r/min 2100
Hydraulic pump Big pump 90 series 100 set pressure MPa 35
Maximum flow L/min 210
Medium pump 45 series 60 set pressure MPa 28
Maximum flow L/min 120
Small pump 45 series 60 set pressure MPa 28
Maximum flow L/min 120
Side front pump 12.5 set pressure MPa 20
Maximum flow L/min 25
Side rear pump 04 set pressure MPa 5
Maximum flow L/min 8
Mast Total m 10.82
Adjust The Angle ° 0~90
Drilling Angle ° 45~90
Give Process mm 3800
Mast Slip Stroke mm 1100
Main Winch       Single Rope Lift kN 77 Tier 1
Boost Speed m/min 44
Wire Rope Diameter mm 18
Wire Rope Length m 60
Auxiliary Winch       Single Rope Lift kN 12 Tier 1
Boost Speed m/min 100
Wire Rope Diameter mm 6
Wire Rope Length m 1500
Mud Pump Maximum Displacement L/min 250 2.5MPa
Max Pressure MPa 6 52L/min
Walking speed km/h 2
Gradeability ° 30
ground pressure MPa 0.14
Host weight t 13
Dimensions Working Size mm 4635×2240×10820 (L×W×H)
Shipping Size mm 5780×2240×2500
