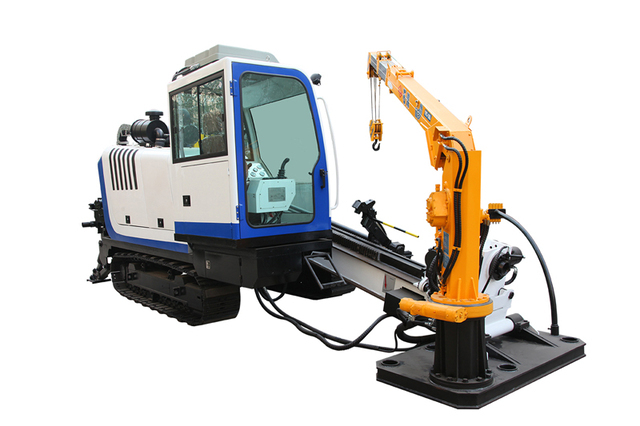

FDP-45 Horizontal Directional Drilling Rig

I. Main Structure Features

A. Adopting short mast design concept, the whole rig is light in weight and comfortable in operation; adopting wired remote control method; main components are adopted well-known brands home and abroad.

B. Adopting well-known brand, the Cummins diesel engine has the features of lower emission and lower noise; combining international leading level control technique, the rig is not only more suitable to be performed in urban area, but has the power consumption reduced to the lowest level under the non-loading working condition of the rig.

C. The rotation of drill head is driven with four low speed hydraulic motors, in large torque, set with 2 gear stepless speed adjustment.

D. Drill head feeding adopted four motors and reducer driving and adopting rack and pinion transmission model, the rig is in high stability and efficiency.

E. Mud pump is driven hydraulically and in mechanical transmission, the pump can be adjusted flexibly for its pressure and displacement.

F. Adopting steel crawlers with rubber track boots, the rig can not only sustain heavy loading, but travel on all kinds of roads.

G. Provided with completed set drilling tools, including Φ83×3000mm drill rod, and the tools can be provided basing on special customization. II. Main Technical Parameters

Engine Power           Cummins 6CTA8.3-C260  194Kw/2200rpm
Feed/Pull Capacity             450 KN
Rotation Torque 16000N·m
Spindle Rotation Speed 0~48,0~96r/min
Feed/ Pull Capacity Pinion-rack Type
6m/min (I Gear) 12m/min(II Gear) 35m/min(III Gear)
Feed Stroke 3500mm
Guide Hole Diameter φ170mm
Penetration Angle 0-20°
Pressure of Hydraulic System 20MPa
Traveling Speed 1.5~3km/h
Dimensions (L×W×H) 7200×2250×2450mm
Weight          11t
Mud Pump Max. Flow Rate 450/600(optional)L/min
Mud Pump Max Pressure 8MPa
Rod Size φ83×3000mm
